Home
>
Non Electric Programmable Logic Controllers (PLC)
>
Spare Parts
>
Plunger tensioner
>
PB5731SS

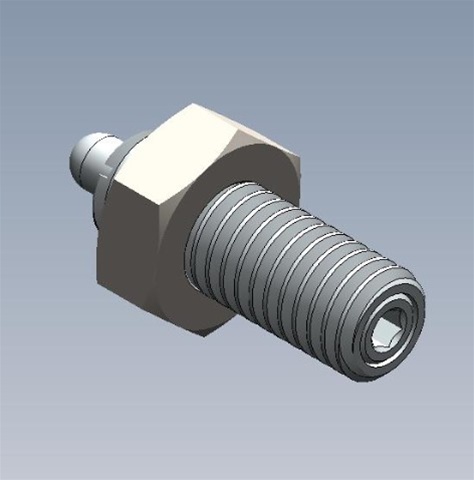

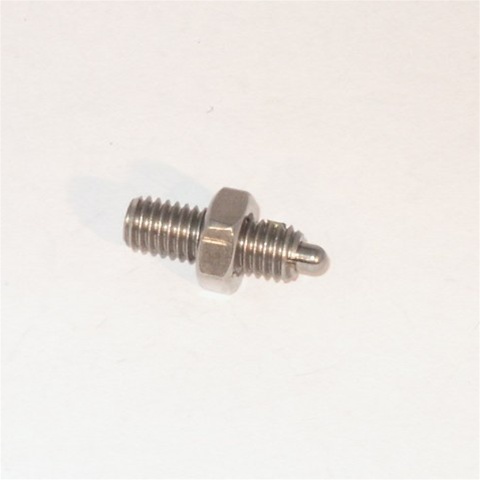

Plunger; Friction detent for CSP programmers; Stainless Steel
Alternative Views:
Same day shipping for this item!
List Price
$
18.69
Quantity in Stock:25
Product Code:
PBPL01
Qty:
Description
Specifications
Plunger; Friction detent for CSP programmers; Stainless Steel
Model - PB5731SS

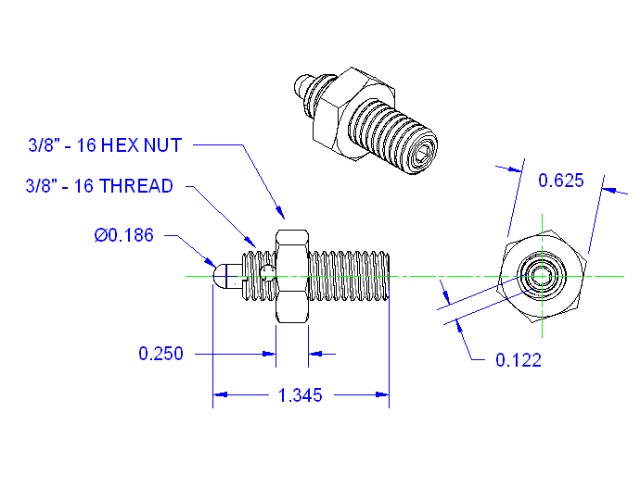

Technical Data
Connection
3/8" -16
Lubrication
None required
Spring Tension Adjustment
5.5 LBS / 14.5 lbs
Plunger Type
Spring
Temperature
Max 250 F (121)
Locking Element
Thread-Locking
Materials
Valve body
303 Series Stainless Steel
Nut
316 Stainless Steel
Nose Finish
Plain
Model - PB5731SS
DESCRIPTION
Model - PB5731SS
Features
Adjustable
May be adjusted to fine tune the detent drum action rotation
Stainless Steel
To withstand harsh environments
Nut
Unit arrives with the adjusting nut for plunger placement
