M113A011

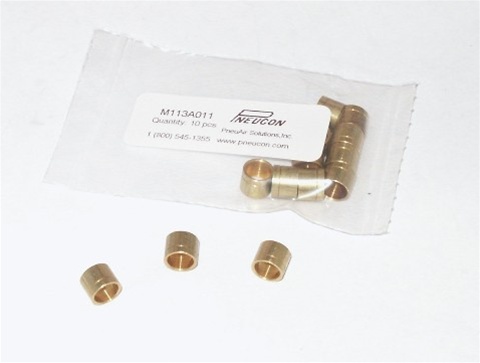

Sleeve, 1/4" OD Tubing, for use with barbed fittings, bag of 10
Alternative Views:
Same day shipping for this item!
List Price ea. Bag of 10
$
12.66
Quantity in Stock:4489
Product Code:
MSLA01
Qty:
Description
Specifications

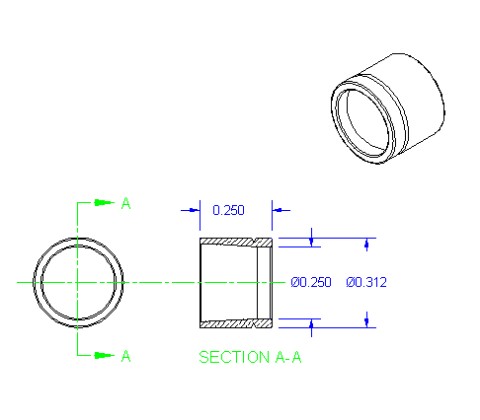

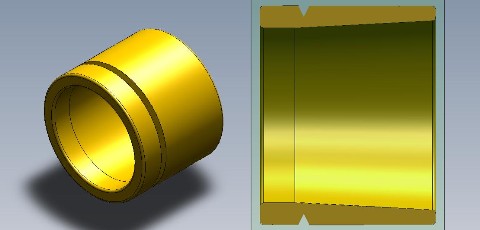

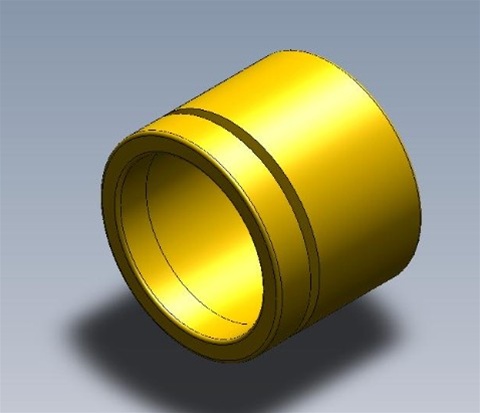

Tubing Sleeve, Brass; for 1/4"OD Polyurethane tubing used with barbed fittings.
Model - M113A011 (Bag of 10)
Technical Data
Temperature Range
Use when temperatures consistently exceed 80
o
F (26
o
C)
Working Pressure
Use when pressures consistently exceed 70 PSI (4.8 b)
Weight
.1 oz. (2.83g) bag of 10
Materials
Sleeve
Brass
DESCRIPTION
M113A011 (bag of 10)
Features
Installation
Easily slides over barbed connection using 1/4" open end wrench
Temperature / Pressure
Keeps the tubing secure to the barb when high temperatures or high pressure are expected
Material
Brass for corrosion resistance
