  Home > Non Electric Programmable Logic Controllers (PLC) > Spare Parts > Programmer drums >

M466Z005
M466Z005

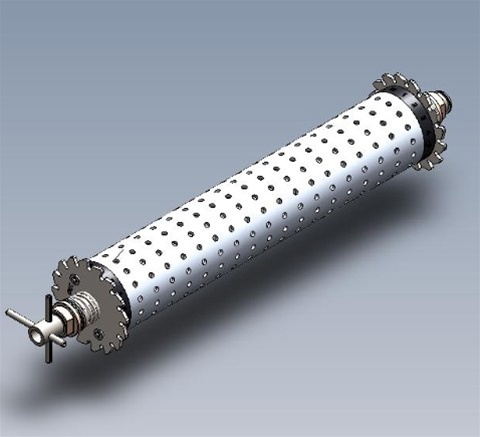

Drum Assembly and Program Pins for the CSP18 drum programmers; 2011 -T3 Aluminum Clear Anodized to (MIL-A-8625 Type 11). 316 Stainless Steel Shaft

Alternative Views:


Same day shipping for this item!
List Price $782.21

Quantity in Stock:6
Product Code: MDRM18
Qty:

Description Specifications

Drum Assembly and Program Pins for the CSP18 drum programmers; 2011 -T3 Aluminum Clear Anodized to (MIL-A-8625 Type 11). 316 Stainless Steel Shaft
DESCRIPTION
Model - M466Z005



Features
Pins

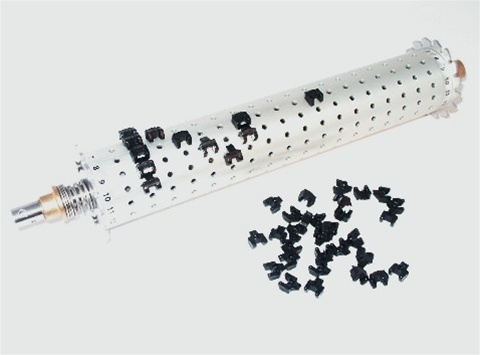

Arrives complete with 150 each programming pins
Steps
16 steps by 18 positions
Bearings
Oilite Sintered Bronze Sleeve Bearing
Body
2011T3 Aluminum bar stock clear anodized to (MIL-A-8625 Type 11)
Anodized for offshore applications.
Longevity
10 million cycles
Installation
Easily slides in and out for quick program changes
Stops
Mechanical roll pin stops pre-installed
