  Home > Non Electric Programmable Logic Controllers (PLC) > Spare Parts > Cylinder Actuator Assy >

M564Z001
M564Z001

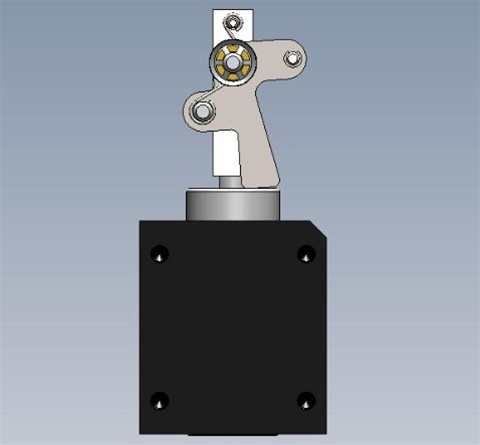

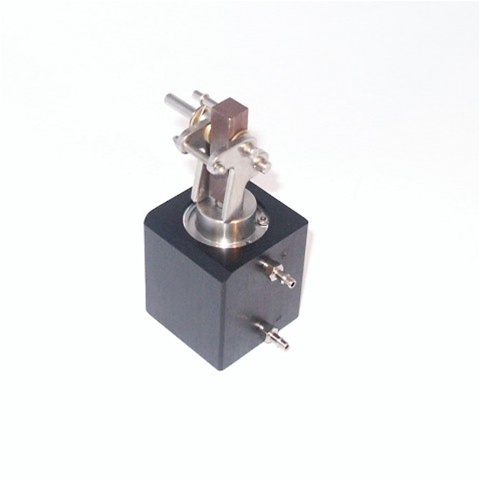

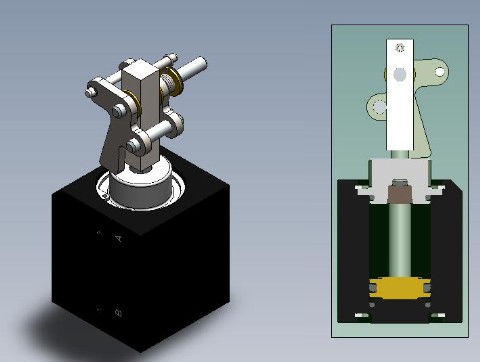

Cylinder and Ratchet Assembly for CSP24 drum programmers; 2011 -T3 Aluminum Black Anodized to (MIL-A-8625 Type 11). Stainless Steel Spring; Buna N Seals

Alternative Views:


Same day shipping for this item!
List Price $279.81

Quantity in Stock:6
Product Code: MCR24
Qty:

Description Specifications

Cylinder and Ratchet Assembly for CSP24 drum programmers; 2011 -T3 Aluminum Black Anodized to (MIL-A-8625 Type 11). Stainless Steel Spring; Buna N Seals
DESCRIPTION
Model - M564Z001



Features
Seals
Buna N "O" rings
Piston
Highly polished 316 Stainless Steel for longevity
Bearings
Oilite Sintered Bronze Sleeve Bearing
Body
2011T3 Aluminum bar stock black anodized to (MIL-A-8625 Type 11)
Anodized for offshore applications.
Longevity
10 million cycles
Ports
10-32 UNF ports
Mounting
Universal mounting holes facilitate the older CSP programmers for compatibility
