Polyurethane for "Push In" Connections
>
F009G125-Y

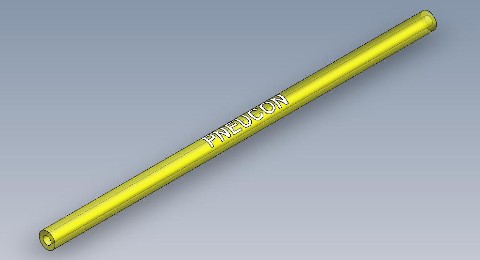

Tubing, 1/8" OD for push-in style fittings; Yellow translucent, UV stabilized
Same day shipping for this item!
List Price per foot
$
0.44
Quantity in Stock:479
Product Code:
CTUBP07
Qty:
Description
Specifications
Tubing; Polyurethane, 95 durometer for push-in style fittings; ether base; UV stabilized.
Model - F009G125-Y
Technical Data
Color
Yellow translucent
Temperature Range
- 40
o
F to + 165
o
F
Vacuum Rating
28" Hg.
Working Pressure
255 PSI @ 75
o
F; (17.5 b @ 25
o
C) 3:1 Safety Factor
Diameter Tolerances
+/- .005"
Base Resin Compliance
NSF61, Meets UL94HB
Durometer
95A
Weight
4 oz. (113.4g) / ft
Materials
Polymer
Ether-based, Polyurethane, UV stabilized
Model - F009G125-BK
Model - F009G125-BL
Model - F009G125-C
Model - F009G125-G
Model - F009G125-R
Model - F009G125-W
Model - F009G125-Y
DESCRIPTION
Model - F009G125-Y
Features
Resistance
Kink and abrasion resistance
Temperature
Suitable for temperatures ranging from -40
o
to 165
o
F
Polymer
Ether-based Polyurethane that is UV stabilized. Provides many years service in harsh outdoor conditions.
Memory
May be stretched, bent or kinked and will immediately return to it's original dimensions.
