Home
>
Accessories
>
Terminal Strips
>
CTS443

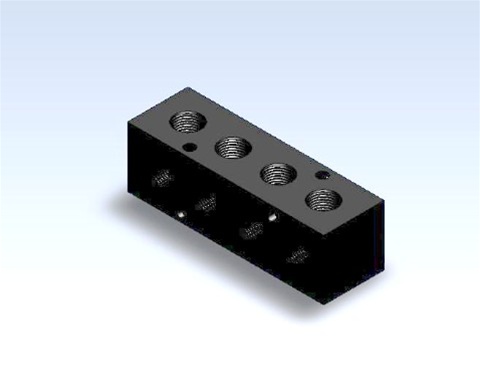

Terminal strip; 4 station; 1/8" NPT x 1/8" NPT x 1/8" NPT ports; 3 sides; black anodized aluminum
Alternative Views:
Same day shipping for this item!
List Price
$
36.50
Quantity in Stock:14
Product Code:
CTS15
Qty:
Description
Specifications
Terminal strip; 4 station; 1/8" NPT x 1/8" NPT x 1/8" NPT ports; 3 sides; black anodized aluminum
Model - CTS443

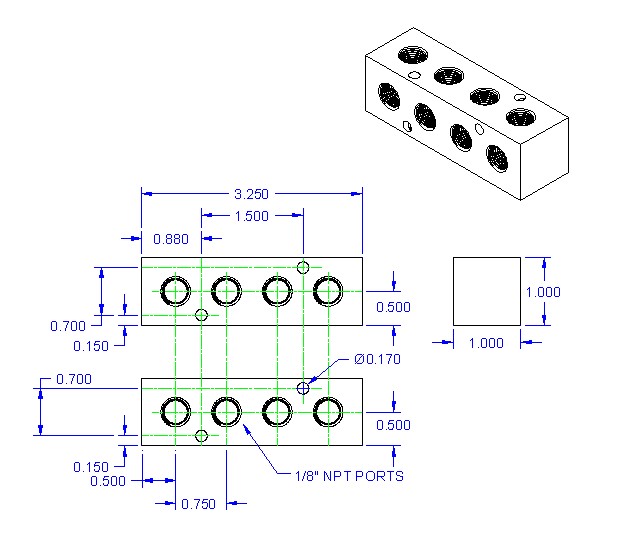

Technical Data
Connection
4 stations x 3 sides, 1/8" NPT Ports
Medium
Compressed air; inert gasses, fluids
Operating Pressure
1000 PSI non shock (68.95)
Temperature
-35 F (-37) to 300 (148.9)
Weight
1.1 oz. (46.6g)
Materials
Terminal Strip
Black anodized aluminum
Operation
Pressurize / Vent
Model - CTS443

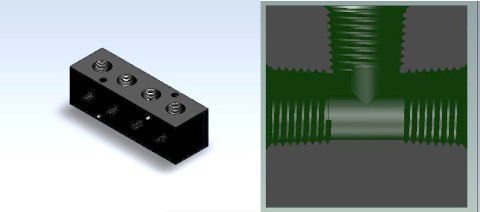

DESCRIPTION
Model - CTS443
Features
Mounting
Mounting holes located on each end
Spacing
Ports are spaced to accommodate the largest of fittings
Port
1/8" NPT porting on opposing sides of the terminal block
Options
Material
Brass or stainless steel
