Shuttle valve; "OR" function; Brass, Electroless Nickel finish, Buna N; 10-32 ports
Model - CSV2DB
|
Technical Data |
|
|
|
|
|
|
|
|
7.8 CFM @ 60 PSI (4.2)
Cv .11 |
|
Lubrication |
None required |
|
|
Compressed air; inert gasses |
|
Operating Pressure |
Vacuum to 125 PSIG (8.8) |
|
Pilot Pressure |
5 PSI (.03) Minimum |
|
Shift Force |
.19 lbs. (.71 kg) |
|
|
-35 F (-37) to 150 (66) |
|
Weight |
.096 oz. (2.7g) |
|
Materials |
|
Manual override buttons |
Delrin |
|
Mounting Brackets |
Stainless Steel |
|
Seals |
Buna N |
|
Spool |
Delrin |
|
Spring Clips |
Stainless Steel |
|
Valve body |
Glass filled Noryl® Resin |
|
Operation |
|
At rest
|
Ports 1 and 2, or, 3 and 2 are connected |
|
Signal at Port "1" |
Ports 1 and 2 connected | | Signal at Port "3" | Ports 1 and 3 connected | Signal at Port "1" and "3" same time
| First signal to arrive or highest pressure
|
Model - CSV2DB
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
DESCRIPTION

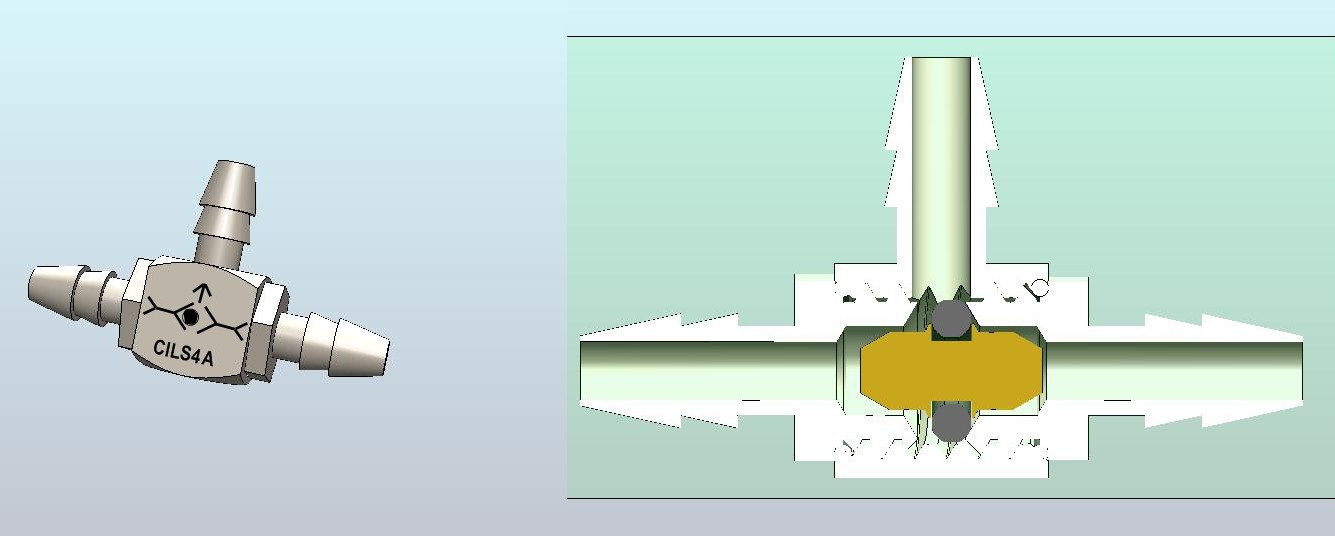

Model - CILS4A
|
Features |
|
Seals |
Buna |
|
Spool |
Balanced rapid response .062 travel |
|
|
Provides low friction high flow captive seal technology |
|
|
Suitable for applications requiring wide temperature swings or placement in harsh environments |
|
|
100 million cycles |
|
Ports |
10-32 Dual porting on each valve side provides piping versatility and eliminates the need for (Tees) |
|
Override |
Delrin manual override buttons |
|
|
|
|
|
|
|
|
