CSV2DB
CSV2DB
Shuttle valve, 10-32 ports, Buna N seals

Alternative Views:


Same day shipping for this item!
List Price $34.83
Package includes> Mounting Brackets and Hardware

Quantity in Stock:49
Product Code: CSV01

End button style

Stainless Steel, Standard [Add $3.35]
Metric port threads

M5 Threads [Add $2.85]
Seals

Seal type:
Viton [Add $0.50]

Qty:
Description Specifications

Shuttle valve; "OR" function; balanced spool design; 10-32 ports; 30% glass filled Noryl composite; Stainless Steel Spring clips; Delrin override buttons.
DESCRIPTION
Model - CSV2DB
Old model number C134SV

Features
Seals
Patented Tadpole low friction seals

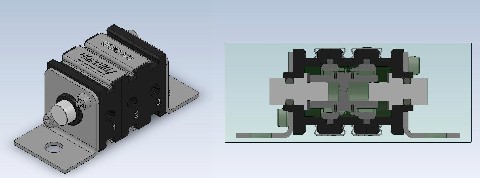

Spool
Balanced rapid response .062 travel
Spool Fingers
Provides low friction high flow captive seal technology
Noryl Resin
Suitable for applications requiring wide temperature swings or placement in harsh environments
Longevity
100 million cycles

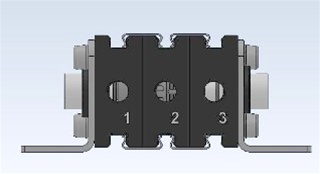

Ports
10-32 Dual porting on each valve side provides piping versatility and eliminates the need for (Tees)
Override
Delrin manual override buttons

Options

Override

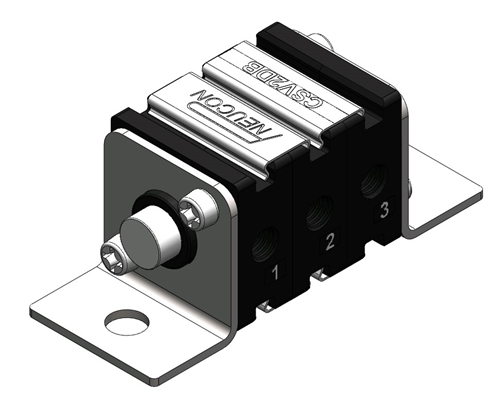

Stainless Steel manual override buttons, Extended (shown) or Tamper resistant flush

Ports

M5 port threads
SealsViton
