CPPV4A

Pressure Sensor, 5/2 way valve, 5 - 80 PSI Range

Alternative Views:

Same day shipping for this item!

List Price $477.03

Quantity in Stock:4

Product Code: CPP01

Adjuster Head

Click to view another Adjuster Style

Adjuster Style:

Micrometer knob adjuster [Add $75.00]

Seals

Seal type:

Viton [Add $5.00]

Qty:

Description

Specifications

3D Viewer/CAD

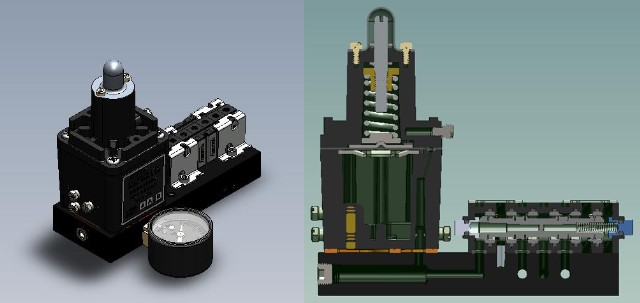

Pressure Sensor; Block Bleed with integrated 5/2 way valve; 1/8 NPT ports; 30% glass filled Noryl^® composite body with anodized aluminum base; Stainless Steel Components

DESCRIPTION

Model - CPPV4A

Features
Connectivity	May be used to monitor control system pressures, turning air or alarms on or off as required
Accuracy	Accurate to within +/- .009 PSIG of the set point
Adjuster	Flat blade screw adjuster with tamper proof cap (standard)
Noryl^® Resin	Suitable for applications requiring wide temperature swings or placement in harsh environments
Longevity	30 million cycles
Ports	1/8 NPT

Options
Adjuster	Micrometer Dial with locking tab
