CMB8290
Manifold; 8 station; 1/4" NPT inlet x 1/8 NPT outlets; 2 sides at 90
o
; black anodized aluminum

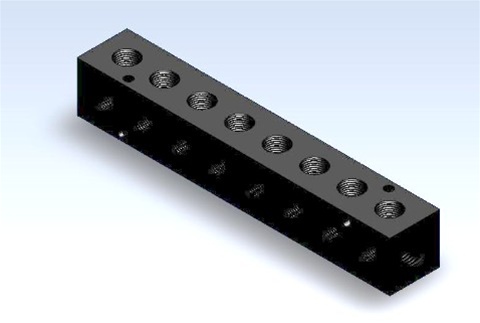

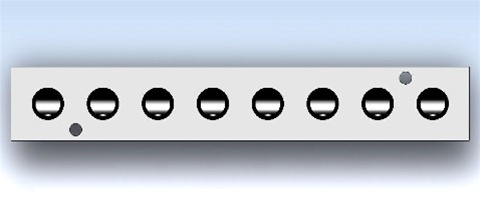

Alternative Views:
Same day shipping for this item!
List Price
$
56.30
Quantity in Stock:4
Product Code:
CMA18
Qty:
Description
Specifications
Manifold; 8 station; 1/4" NPT inlet x 1/8 NPT outlets; 2 sides at 90
o
; black anodized aluminum

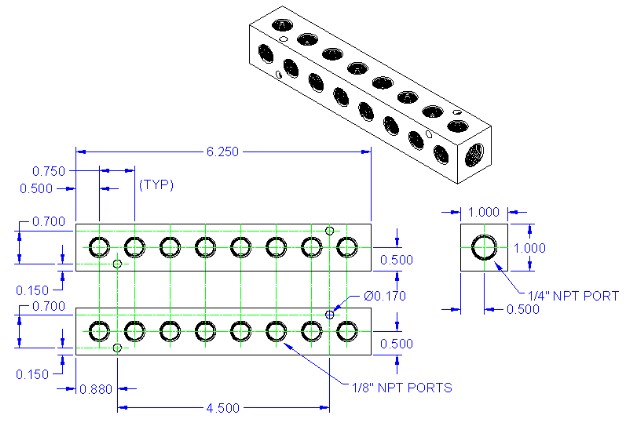

Model - CMB8290
Technical Data
Connection
1/4" NPT inlet x 8 each 1/8" NPT outlets on 2 sides at 90
o
Medium
Compressed air; inert gasses, fluids
Operating Pressure
1000 PSI non shock (68.95)
Temperature
-35 F (-37) to 300 (148.9)
Weight
1.1 oz. (46.6g)
Materials
Manifold Block
Black anodized aluminum
Operation
Pressurize / Vent
Model - CMB8290

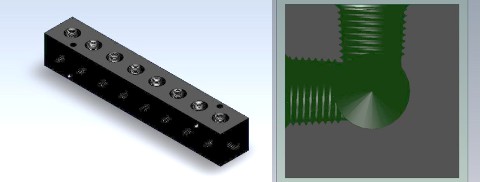

DESCRIPTION
Model - CMB8290
Features
Mounting
Mounting holes located on each end
Spacing
Ports are spaced to accommodate the largest of fittings
Port
1/4" NPT inlet with 1/8" NPT outlets on 2 sides at 90
o
Options
Material
Brass or stainless steel
