CMA102
Manifold; 10 station; 1/8" NPT inlet x 10-32 outlets; 2 sides; black anodized aluminum
Alternative Views:
Same day shipping for this item!
List Price
$
39.92
Quantity in Stock:6
Product Code:
CMA08
Qty:
Description
Specifications
Manifold; 10 station; 1/8" NPT inlet x 10-32 outlets; 2 sides; black anodized aluminum
Model - CMA102

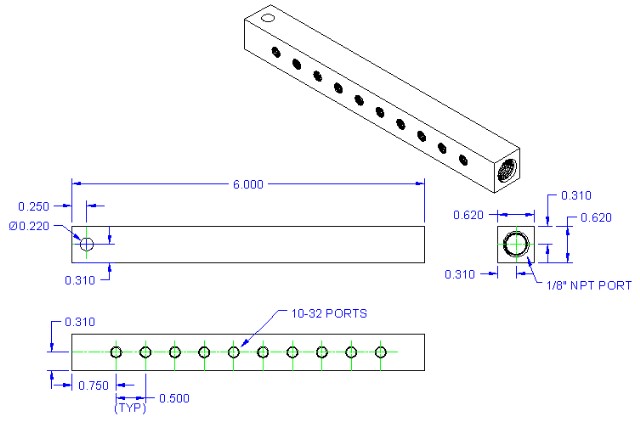

Technical Data
Connection
1/8" NPT inlet x 10 each 10-32 outlets on 2 sides
Medium
Compressed air; inert gasses, fluids
Operating Pressure
1000 PSI non shock (68.95)
Temperature
-35 F (-37) to 300 (148.9)
Weight
1.1 oz. (46.6g)
Materials
Manifold block
Black anodized aluminum
Operation
Pressurize / Vent
Model - CMA102

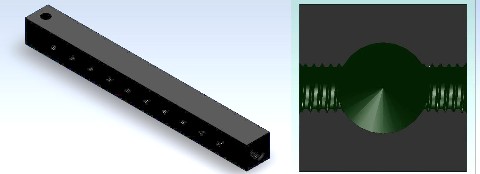

DESCRIPTION
Model - CMA102
Features
Mounting
Mounting holes located on each end
Spacing
Ports are spaced to accommodate the largest of fittings
Port
1/8" NPT input with 10-32 porting on opposing sides of the manifold
Options
Material
Brass or stainless steel
