Home
>
Accessories
>
Manifolds
>
CMA101

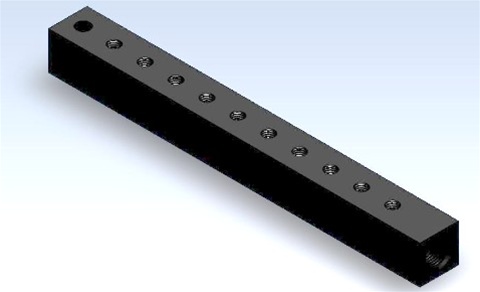

Manifold; 10 station; 1/8" NPT inlet x 10-32 outlets; single side; black anodized aluminum
Alternative Views:
Same day shipping for this item!
List Price
$
31.15
Quantity in Stock:5
Product Code:
CMA04
Qty:
Description
Specifications
Manifold; 10 station; 1/8" NPT inlet x 10-32 outlets; single side; black anodized aluminum
Model - CMA101

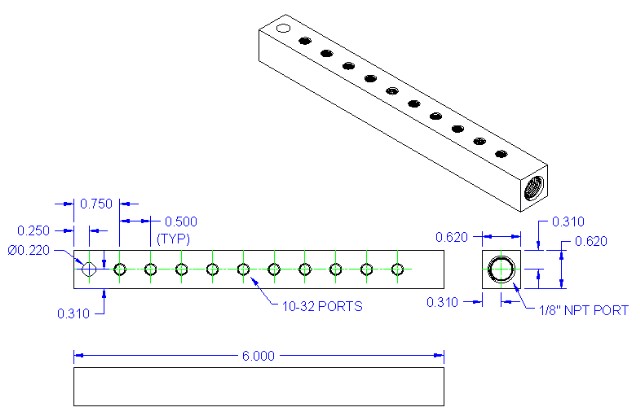

Technical Data
Connection
1/8" NPT inlet x 10 each 10-32 outlets on 1 side
Medium
Compressed air; inert gasses, fluids
Operating Pressure
1000 PSI non shock (68.95)
Temperature
-35 F (-37) to 300 (148.9)
Weight
1.1 oz. (46.6g)
Materials
Manifold Block
Black anodized aluminum
Operation
Pressurize / Vent
Model - CMA101

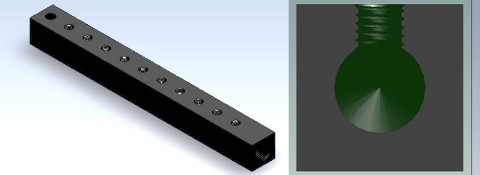

DESCRIPTION
Model - CMA101
Features
Mounting
Mounting holes located on each end
Spacing
Ports are spaced to accommodate the largest of fittings
Port
1/8" NPT input with 10-32 porting on 1 side of the manifold
Options
Material
Brass or stainless steel
