5/2 way, Button plunger operator; Brass body, 1/8 NPT ports
Model - CLV4D
|
Technical Data |
|
|
|
|
|
|
|
Lubrication |
None required |
|
|
Compressed air; inert gasses |
|
Operating Pressure |
0 - 125 PSI (0 - 8.6) |
|
|
-35 F (-37) to 150 (66) |
|
Operating Force |
77 oz (2.183 kg) |
|
Weight |
5.0 oz. (.155 kg) |
|
Materials |
|
Stem, Cartridge |
Stainless Steel
|
|
Orings |
Buna N |
|
Button Plunger
|
Plated Steel |
| Plunger |
Stainless Steel |
|
Body |
Brass |
|
Operation |
|
Plunger depressed |
3 and 2; 4 and 5 connected |
|
Plunger released |
3 and 4; 1 and 2 connected
|

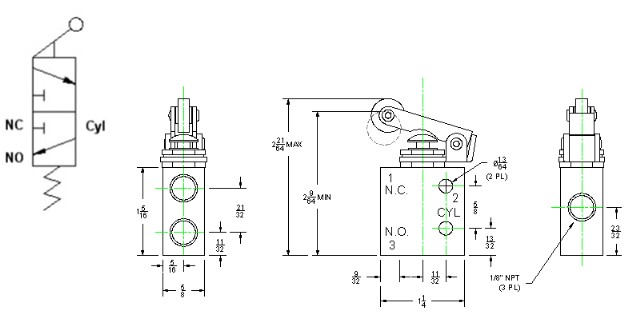

Model CLV3A
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
DESCRIPTION
Model - CLV4D
|
Features |
|
Size
|
Compact 1-1/4" x 1-3/4"e with high flow capabilities.
|
|
Design |
Robust brass body with stainless steel balanced spool.
|
|
Versatility |
May be piped normally open, normally closed, or for dual pressures |
High Flow
|
May be used to drive large cylinders (see flow specs) |
|
Ports |
1/8 NPT porting for use in many high flow applications
|
|
|
|
|
|
|
|
