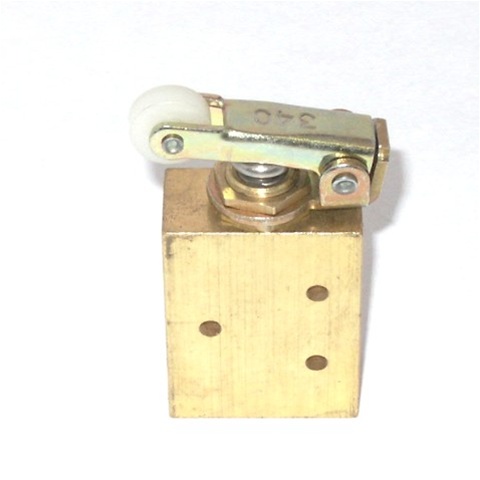

5/2 way roller lever limit valve; Brass body, 1/8 NPT ports
Model - CLV4A Model - CLV4B
Technical Data |
|
|
|
|
Lubrication |
None required |
|
Compressed air; inert gasses |
Operating Pressure |
0 - 125 PSI (0 - 8.6) |
|
-35 F (-37) to 150 (66) |
Operating Force |
44 oz (1.247 kg) |
Weight |
5.0 oz. (.155 kg) |
Materials |
Stem, Cartridge |
Stainless Steel
|
Orings |
Buna N |
Roller |
Delrin |
Roller Lever |
Plated Steel |
Body |
Brass |
Operation |
Plunger depressed |
3 and 2; 4 and 5 connected |
Plunger released |
3 and 4; 1 and 2 connected
|
Model CLV3A
|
|
![](/v/vspfiles/templates/90/images/clear1x1.gif) |
![](/v/vspfiles/templates/90/images/DBox_Border_Left_Bottom.gif) |
![](/v/vspfiles/templates/90/images/clear1x1.gif) |
![](/v/vspfiles/templates/90/images/DBox_Border_Right_Bottom.gif) |
![](/v/vspfiles/templates/90/images/DBox_Border_Left_Bottom.gif) |
![](/v/vspfiles/templates/90/images/clear1x1.gif) |
![](/v/vspfiles/templates/90/images/DBox_Border_Right_Bottom.gif) |
![](/v/vspfiles/templates/90/images/DBox_Border_Left_MidDiv.gif) |
![](/v/vspfiles/templates/90/images/clear1x1.gif) |
![](/v/vspfiles/templates/90/images/DBox_Border_Right_MidDiv.gif) |
![](/v/vspfiles/templates/90/images/clear1x1.gif) |
DESCRIPTION
Model - CLV4A ![](/v/vspfiles/assets/images/clv4a%20desc.jpg)
Features |
Size
|
Compact 1-1/4" x 1-3/4"e with high flow capabilities.
|
Design |
Robust brass body with stainless steel balanced spool.
|
Versatility |
May be piped normally open, normally closed, or for dual pressures |
High Flow
|
May be used to drive large cylinders (see flow specs) |
Ports |
1/8 NPT porting for use in many high flow applications
|
|
|
