CLV5B32
CLV5B32

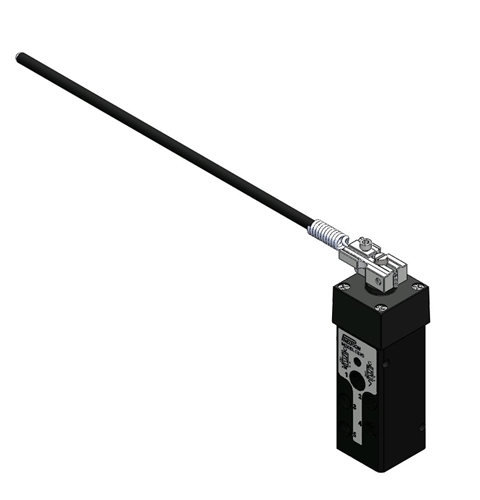

Top operating head, Delrin spring rod, spring return

Alternative Views:


Same day shipping for this item!
List Price $592.65


Product Code: CLB33

Pilots

Air Pilot Return:
Air Return [Add $5.85]
Seals

Seal type:
Viton [Add $5.00]

Qty:

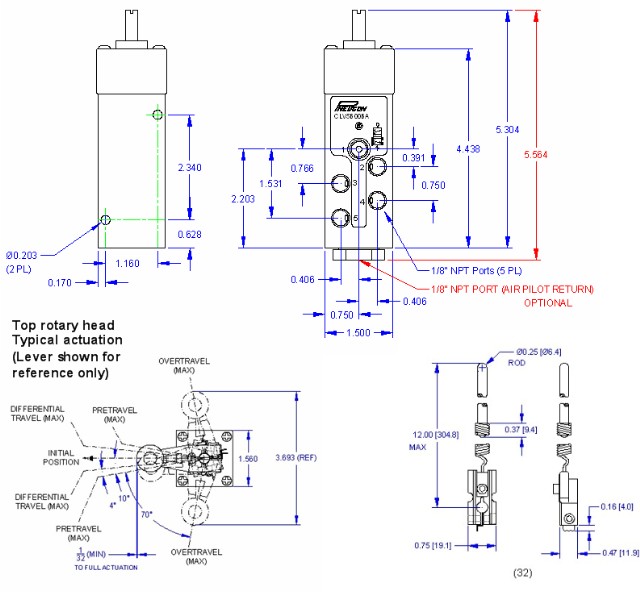

Description Specifications 3D Viewer/CAD

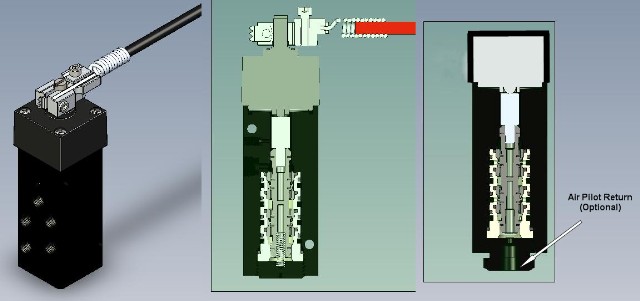

5/2 way valve; Top Rotary Operating Head with delrin spring rod lever, Spring Return; 1/8 NPT ports; 2011 -T3 Aluminum Black Anodized to (MIL-A-8625 Type II). Stainless Steel Spring.
DESCRIPTION
Model - CLV5B32
Model - CLV5B33
Features
Seals
Patented Tadpole low friction seals
Spool
Balanced rapid response .062 travel
Spool Fingers
Provides low friction high flow captive seal technology
Body
1.5" 2011T3 Aluminum bar stock black anodized to (MIL-A-8625 Type II)
Anodized for offshore applications.
Longevity
100 million cycles
Ports
Fully ported 1/8 NPT
Operating Head
Rugged corrosion resistant zinc, phosphate treated and epoxy finished. Front and rear oil impregnated sintered bronze bearings on stainless steel operating shaft. Internal cam is easily changed for left, right or two way action
