CLV5A39
CLV5A39
Side operating head, Nylatron Flex Loop, spring return

Alternative Views:


Same day shipping for this item!
List Price $469.53


Product Code: CL040

Pilots

Air Pilot Return:
Air Return [Add $5.85]
Seals

Seal type:
Viton [Add $5.00]

Qty:

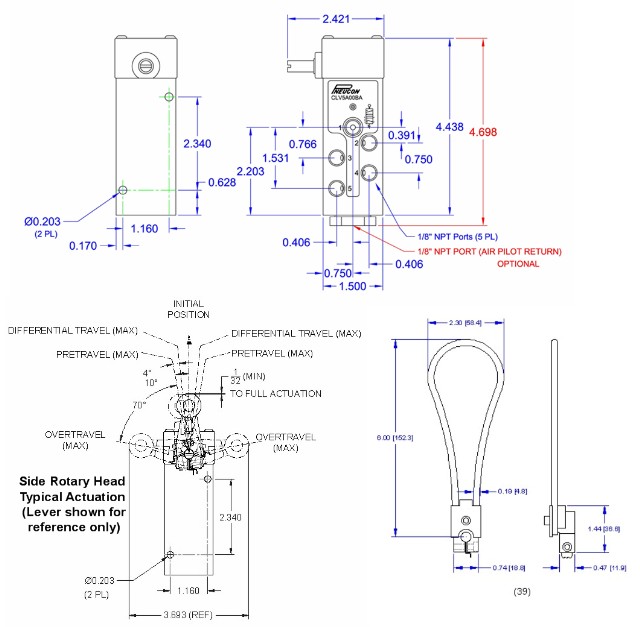

Description Specifications 3D Viewer/CAD

5/2 way valve; Side Rotary Operating Head with Nylatron Flex loop lever, Spring Return; 1/8 NPT ports; 2011 -T3 Aluminum Black Anodized to (MIL-A-8625 Type II). Stainless Steel Spring.
DESCRIPTION
Model - CLV5A39
Features
Seals
Patented Tadpole low friction seals
Spool
Balanced rapid response .062 travel
Spool Fingers
Provides low friction high flow captive seal technology
Body
1.5" 2011T3 Aluminum bar stock black anodized to (MIL-A-8625 Type II)
Anodized for offshore applications.
Longevity
100 million cycles
Ports
Fully ported 1/8 NPT
Operating Head
Rugged corrosion resistant zinc, phosphate treated and epoxy finished. Front and rear oil impregnated sintered bronze bearings on stainless steel operating shaft. Internal cam is easily changed for left, right or two way action
