C32CI11B-NO
C32CI11B-NO
3/2 Way impulse valve, N.O., When pilot is applied the output vents for .5 seconds then returns, spring return, Buna N seals

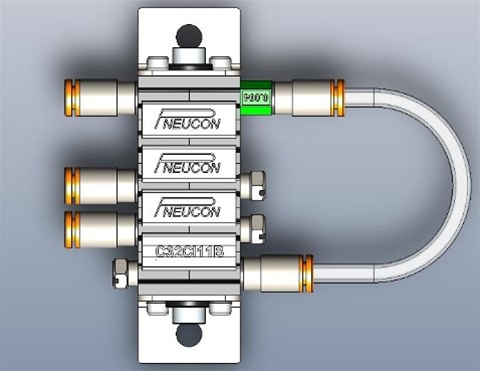

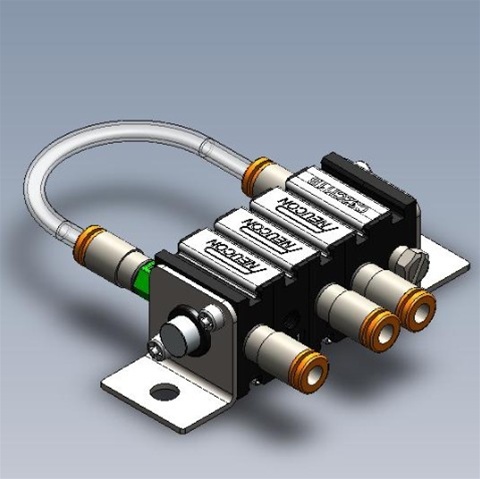

Alternative Views:


Same day shipping for this item!
List Price $83.89
Package includes> Brackets, Fittings, Orifice, Tubing, and Hardware

Quantity in Stock:9

Product Code: CDI05

End button style

Stainless Steel, Standard [Add $3.35]
Metric port threads

M5 Threads [Add $2.85]

Qty:
Description Specifications

3/2 way N.O. impulse valve; When pilot is applied the output vents for .5 seconds then returns; Balanced spool design; Spring return; 10-32 ports; 30% glass filled Noryl® composite; Stainless Steel Spring clips; Color Coded manual override buttons.
Arrives pre-plumbed for N.O. operation
DESCRIPTION
Model - C32CI11B-N.O.




Features
Seals
Patented Tadpole low friction seals
Fixed Orifice
Self cleaning .004 color coded orifice for consistent reliable impulse (one shot) outputs
Spool
Balanced rapid response .062 travel
Spool Fingers
Provides low friction high flow captive seal technology
Noryl® Resin
Suitable for applications requiring wide temperature swings or placement in harsh environments
Longevity
100 million cycles
Ports
10-32 Dual porting on each valve side provides piping versatility and eliminates the need for (Tees)
Override
Color coded anodized manual override buttons
TimingLonger times are easily adjusted by adding longer loop tubes after the orifice. For extra long output times you may remove the plug from the "B" pilot and add volume chambers

Options

Override

Stainless Steel manual override buttons, Extended (shown) or Tamper resistant flush

Ports

M5 port threads
