C32CI10B-NO
C32CI10B-NO

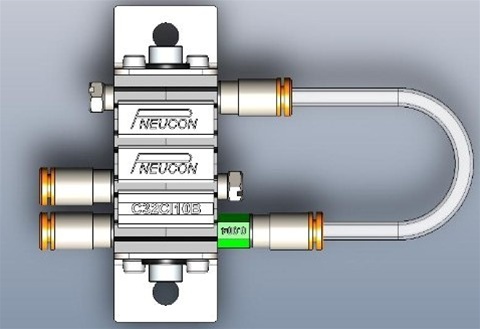

3/2 way N.O. impulse valve, combined supply and pilot lines, .5 sec output, spring return, Buna N seals

Alternative Views:


Same day shipping for this item!
List Price $78.17
Package includes> Fittings, Orifice, Tubing, and Hardware


Product Code: CDI01

End button style

Stainless Steel, Standard [Add $3.35]
Metric port threads

M5 Threads [Add $2.85]

Qty:
Description Specifications

3/2 way N.O. impulse valve; Combined supply and pilot lines, .5 second output; Balanced spool design; Spring return; 10-32 ports; 30% glass filled Noryl® composite; Stainless Steel Spring clips; Color Coded manual override buttons.
DESCRIPTION
Model - C32CI10B-NO




Features
Seals
Patented Tadpole low friction seals
Fixed Orifice
Self cleaning .004 color coded orifice for consistent reliable impulse (one shot) outputs
Spool
Balanced rapid response .062 travel
Spool Fingers
Provides low friction high flow captive seal technology
Noryl® Resin
Suitable for applications requiring wide temperature swings or placement in harsh environments
Longevity
100 million cycles
Ports
10-32 Dual porting on each valve side provides piping versatility and eliminates the need for (Tees)
Override
Color coded anodized manual override buttons
TimingLonger times are easily adjusted by adding longer loop tubes after the orifice. For extra long output times you may remove the plug from the "A" pilot and add volume chambers

Options

Override

Stainless Steel manual override buttons, Extended (shown) or Tamper resistant flush

Ports

M5 port threads
