M32D13B
M32D13B

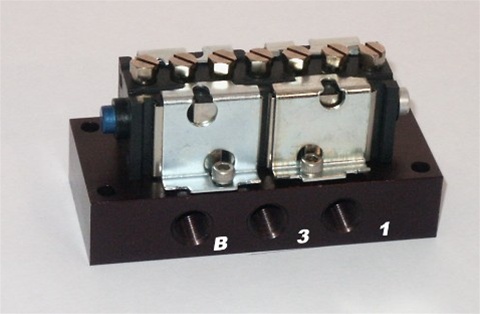

3/2 way valve; 1 Pilot A; 3 Pilots B; Detent; 1/8" NPT ports, Buna N seals

Alternative Views:


Same day shipping for this item!
List Price $105.21
Package includes> Mounting Brackets and Hardware

Quantity in Stock:14

Product Code: CD154

End button style

Stainless Steel, Standard [Add $3.35]
Metric port threads

M5 Threads [Add $2.85]

Qty:
Description Specifications

3/2 way valve; 1 Pilot A; 3 Pilots B; Balanced spool design; 1/8" NPT ports; 30% glass filled Noryl® composite; Stainless Steel Spring clips; Color Coded manual override buttons. Normally Open and Normally Closed detent functions
DESCRIPTION
    Model - M32D13B



Features
Seals
Patented Tadpole low friction seals
Spool

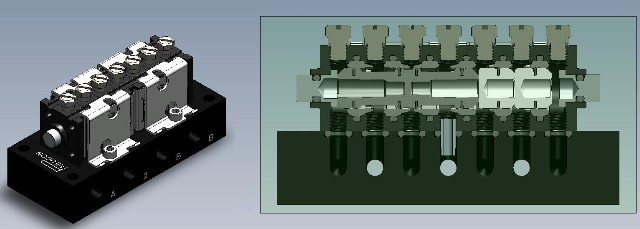

Balanced rapid response .062 travel
Spool Fingers
Provides low friction high flow capitive seal technology
Noryl® Resin
Suitable for applications requiring wide temperature swings or placement in harsh environments
Longevity
100 million cycles
Ports

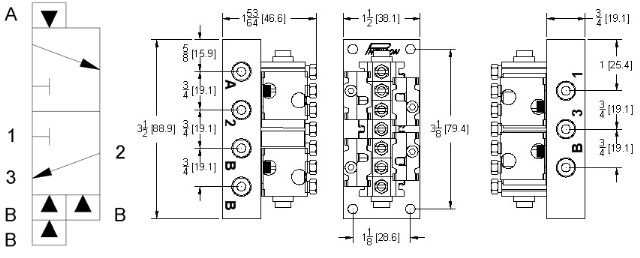

1/8" NPT and 10-32 dual porting on each valve side provides piping versatility and eliminates the need for (Tees)
Override
Color coded anodized manual override buttons

Options

Override

Stainless Steel manual override buttons, Extended (shown) or Tamper resistant flush

Ports

M5 port threads
