C32D31B

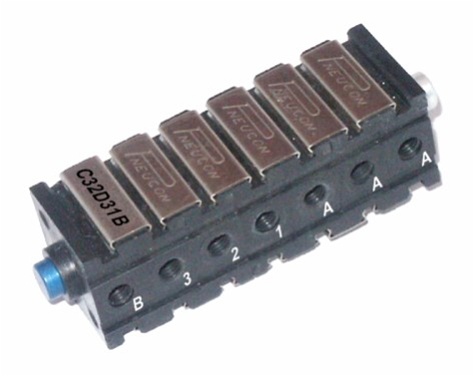

C32D31B
3 pilots A, 1 pilot B; detent, Buna N seals

Alternative Views:


Same day shipping for this item!
List Price $69.82
Package includes> Mounting Brackets and Hardware

Quantity in Stock:44

Product Code: CD017

End button style

Stainless Steel, Standard [Add $3.35]

Qty:

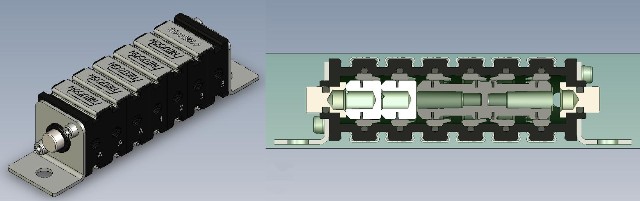

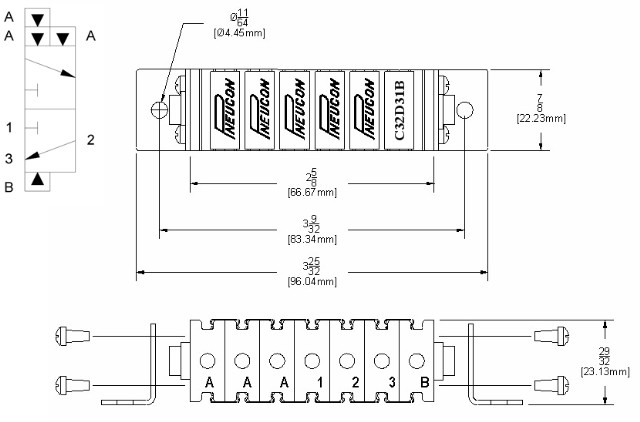

Description Specifications 3D Viewer/CAD

3/2 way valve; 3 Pilots A; 1 Pilot B; Balanced spool design; 10-32 ports; 30% glass filled Noryl® composite; Stainless Steel Spring clips; Color Coded manual override buttons. Normally Open and Normally Closed detent functions
DESCRIPTION
Model - C32D31B
Features
Seals
Patented Tadpole low friction seals
Spool
Balanced rapid response .062 travel
Spool Fingers
Provides low friction high flow captive seal technology
Noryl® Resin
Suitable for applications requiring wide temperature swings or placement in harsh environments
Longevity
100 million cycles

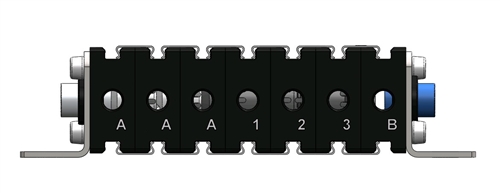

Ports
10-32 Dual porting on each valve side provides piping versatility and eliminates the need for (Tees)
Override
Color coded anodized manual override buttons

Options

Override

Stainless Steel manual override buttons, Extended (shown) or Tamper resistant flush

Ports

M5 port threads
