C32D23B
C32D23B
2 pilots A, 3 pilots B, detent, Buna N seals

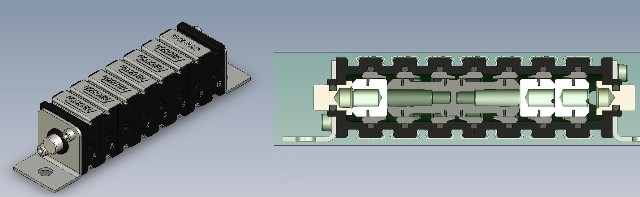

Alternative Views:


Same day shipping for this item!
List Price $82.14
Package includes> Mounting Brackets and Hardware

Quantity in Stock:44

Product Code: CD013

End button style
Click to view another Manual End Buttons

Stainless Steel, Standard [Add $3.35]
Metric port threads

M5 Threads [Add $2.85]

Qty:

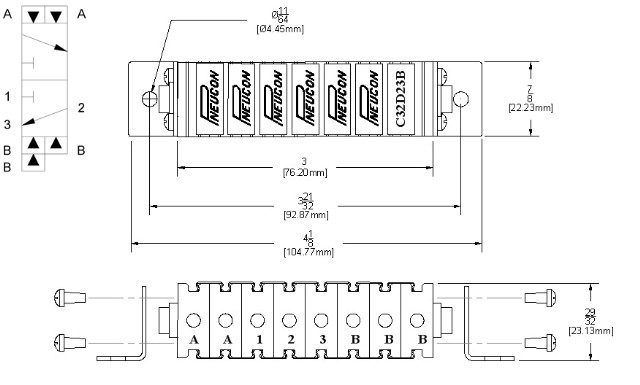

Description Specifications 3D Viewer/CAD

3/2 way valve; 2 Pilots A; 3 Pilots B; Balanced spool design; 10-32 ports; 30% glass filled Noryl® composite; Stainless Steel Spring clips; Color Coded manual override buttons. Normally Open and Normally Closed detent functions
DESCRIPTION
Model - C32D23B
Features
Seals
Patented Tadpole low friction seals
Spool
Balanced rapid response .062 travel
Spool Fingers
Provides low friction high flow captive seal technology
Noryl® Resin
Suitable for applications requiring wide temperature swings or placement in harsh environments
Longevity
100 million cycles
Ports
10-32 Dual porting on each valve side provides piping versatility and eliminates the need for (Tees)
Override
Color coded anodized manual override buttons

Options

Override

Stainless Steel manual override buttons, Extended (shown) or Tamper resistant flush

Ports

M5 port threads
