Home
>
Accessories
>
Volume Chambers
>
CVL092

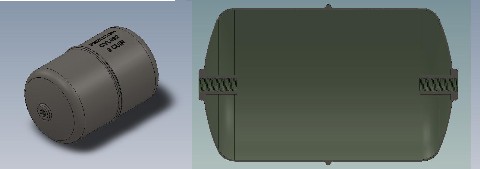

Volume Chamber (accumulator); 9 cubic inch; Dual 10-32 ports; Stainless Steel
Alternative Views:
Same day shipping for this item!
List Price
$
75.06
Quantity in Stock:6
Product Code:
CCVL03
Qty:
Description
Specifications
Volume Chamber (accumulator); 9 cubic inch; Dual 10-32 ports; Stainless Steel

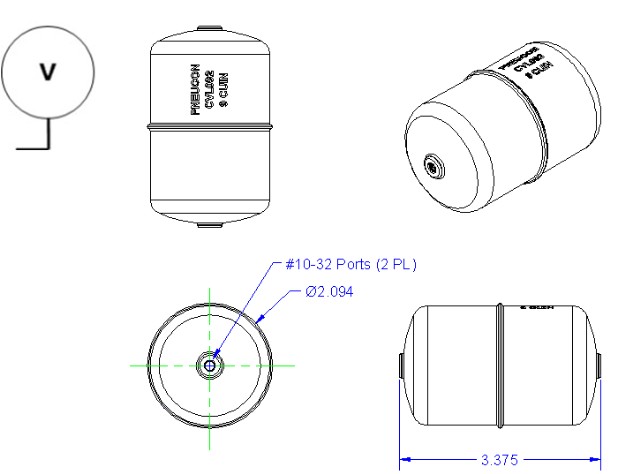

Model - CVL092
Technical Data
Connection
10-32 UNF Ports
Lubrication
None required
Medium
Compressed air; inert gasses
Operating Pressure
Vacuum to 200 PSIG (13.8)
Temperature
-35 F (-37) to 150 (66)
Weight
2.2 oz. (68.4g)
Materials
Valve body
Drawn and welded stainless steel
Operation
Pressurize / Vent
Model - CVL092
DESCRIPTION
Model - CVL092
Features
Mounting
Strap or close nipple mounting
Stainless Steel
Welded Stainless Steel suitable for wide temperature swings or placement in harsh environments
Ports
10-32 Dual porting on each valve side provides piping versatility and eliminates the need for (Tees)
