Jeweled inline orifice; Purple .003; 10-32 ports
Alternative Views:

Same day shipping for this item!
List Price $22.27

Product Code: CCKI003

Description Specifications 3D Viewer/CAD

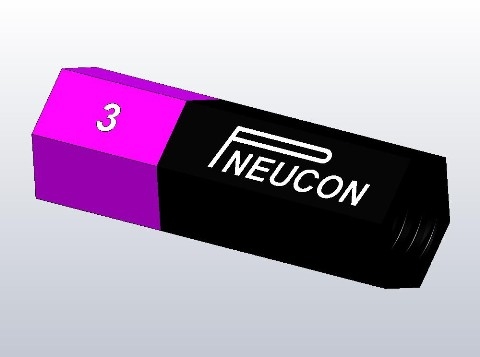

Jeweled inline orifice; Purple anodized aluminum .003; 10-32 ports
The CCK3A jeweled inline orifice allows the versatility of using any 10-32 connector fitting. The ruby jeweled orifice is five times more abrasive resistant than carbide, has zero porosity, is high temperature tolerant and is extremely chemical resistant. The ruby will stand up to harsh environments without appreciable wear or corrosion of the orifice.
Using an orifice offers much more consistent accuracy than a needle valve at the same flow requirement. The needle and seat have to be virtually shut to control below a .020 range. Foreign matter is easily trapped and the needle valve will require constant adjusting and cleaning. Jeweled orifices have knife sharp edges that promote self cleaning.
Model - CCK303


Ruby Jeweled Orifice

Five times more abrasive resistant than carbide


Allows the use of any 10-32 connector fitting to become an orifice

You may stack 2 or more orifices together to fine tune your application
Self Cleaning
Knife sharp edges prevents gradual build up of foreign matter
