Jeweled barbed fitting orifice; Purple .009; 10-32 ports
Alternative Views:

Same day shipping for this item!
List Price $17.21
Package includes> Comes with gasket

Product Code: CCKB8009

Description Specifications 3D Viewer/CAD

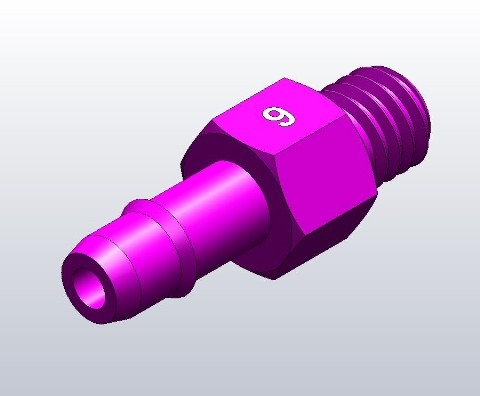

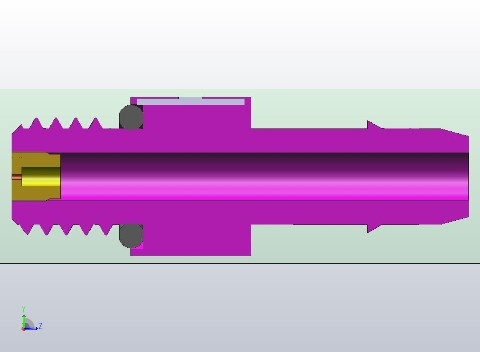

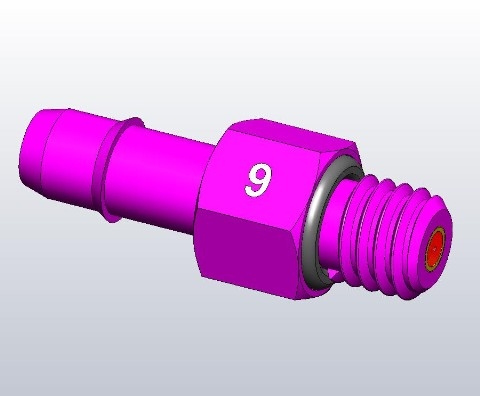

Jeweled barbed fitting orifice; Purple anodized aluminum .009; 10-32 ports
The CCK4 jeweled barbed fitting orifice is a quick simple solution for metering air in a small configuration. The ruby jeweled orifice is five times more abrasive resistant than carbide, has zero porosity, is high temperature tolerant and is extremely chemical resistant. The ruby will stand up to harsh environments without appreciable wear or corrosion of the orifice.
Using an orifice offers much more consistent accuracy than a needle valve at the same flow requirement. The needle and seat have to be virtually shut to control below a .020 range. Foreign matter is easily trapped and the needle valve will require constant adjusting and cleaning. Jeweled orifices have knife sharp edges that promote self cleaning.
Model - CCK409

Ruby Jeweled Orifice

Five times more abrasive resistant than carbide

Gasket Captive O ring

Color coded anodized aluminum

Standard 10-32 threads with 1/4" hex to fit any application
Self Cleaning
Knife sharp edges prevents gradual build up of foreign matter
