CFA2/C32S11B/NC
CFA2/C32S11B/NC

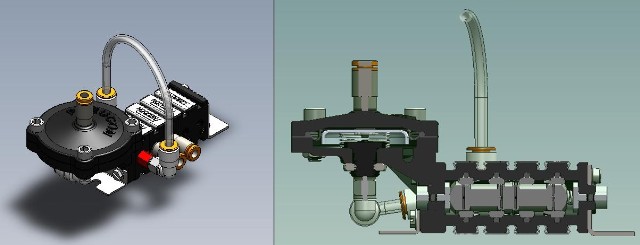

Fluidic actuator with 3/2 way valve, 1 pilot A, 1 pilot B, spring return, Buna N seals

Alternative Views:


Same day shipping for this item!
List Price $151.20
Package includes> Brackets, Actuator, Valve and hardware


Product Code: CFA2NC3

End button style

Stainless Steel, Standard [Add $3.35]
Metric port threads

M5 Threads [Add $2.85]
Seals

Seal type:
Viton [Add $5.00]

Qty:
Description Specifications

3/2 way valve; Fluidic actuator Pilot A; 1 Pilot B; Balanced spool design; Spring return; 10-32 ports; 30% glass filled Noryl® composite; Stainless Steel Spring clips; Color Coded manual override buttons.

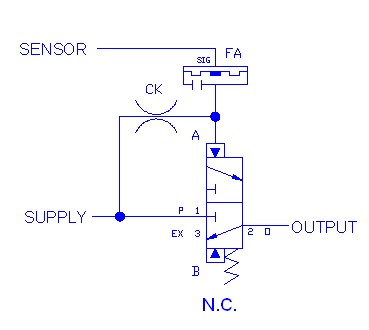

Note: This valve arrives pre-plumbed for N.C. operation. You may change it for N.O. if required.
DESCRIPTION
Model - CFA2/C32S11B/NC





Features
SensitivityNon adjustable, senses 5" H20, Hysteresis of .5" H20
Seals
Patented Tadpole low friction seals
Spool
Balanced rapid response .062 travel
Spool Fingers
Provides low friction high flow captive seal technology
Noryl® Resin
Suitable for applications requiring wide temperature swings or placement in harsh environments
Longevity
100 million cycles
Ports
10-32 Dual porting on each valve side provides piping versatility and eliminates the need for (Tees)
Override
Color coded anodized manual override buttons

Options

Override

Stainless Steel manual override buttons, Extended (shown) or Tamper resistant flush

Ports

M5 port threads
