CPTA006
CPTA006
Panel or base mount Digital Timer; Non Electric predetermining, adjustable from 2 - 30 seconds; Pneumatic reset with integrated 3/2 way valve; 10-32 ports; Accuracy not affected by pressure fluctuations

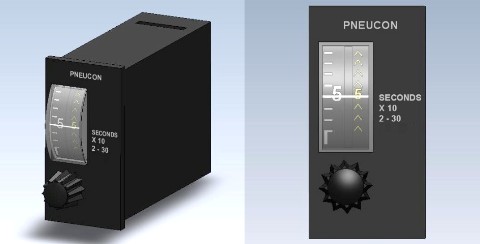

Scroll over for a closer look
List Price $846.73


Product Code: CDTV10
Qty:

Description Specifications

Panel or base mount Digital Timer; Non Electric predetermining, adjustable from 2 - 30 seconds; Pneumatic reset with integrated 3/2 way valve; 10-32 ports; Accuracy not affected by pressure fluctuations.
DESCRIPTION
    Model - CPTA006



Features


Predetermining
Timing
Simply set the desired time in seconds by rotating the bottom dial. When the timing starts the digit wheel on the right side will turn toward zero. When zero is reached a pneumatic output will exit the timer. To reset, vent the supply line and then reapply.


Accuracy
Repeat accuracy within .5% of the set point. Not affected by pressure changes


Clock
Pneumatically wound mechanism is not affected by atmospheric or supply air pressure changes


Environment
Non electric movement perfect for explosive or wash down applications

Valving
3/2 way normally closed


ResetVent supply and then reapply

Connections
10-32
