C53P11B
C53P11B
1 pilot A; 1 pilot B; 3 position pressure center; Buna N seals

Alternative Views:


Same day shipping for this item!
List Price $49.08
Package includes> Mounting Brackets and Hardware

Quantity in Stock:8
Product Code: CD117

End button style
Click to view another Manual End Buttons

Stainless Steel, Standard [Add $3.35]
Metric port threads

M5 Threads [Add $2.85]

Qty:
Description Specifications

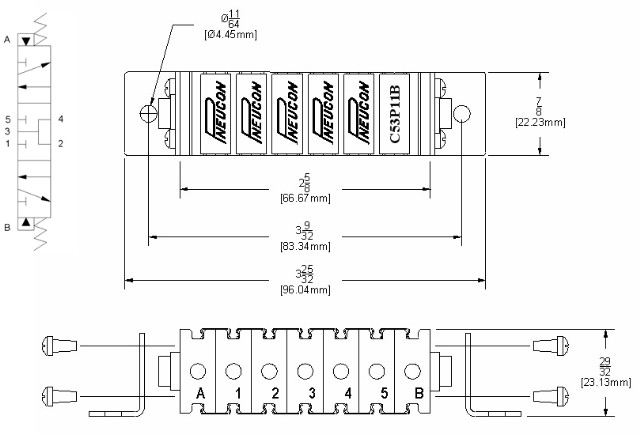

5/3 way valve; 1 Pilot A; 1 Pilot B; 3 Position Pressure Center; Balanced spool design; 10-32 ports; 30% glass filled Noryl composite; Stainless Steel Spring clips; Color Coded manual override buttons.
DESCRIPTION
    Model - C53P11B



Features
Seals
Patented Tadpole low friction seals
Spool

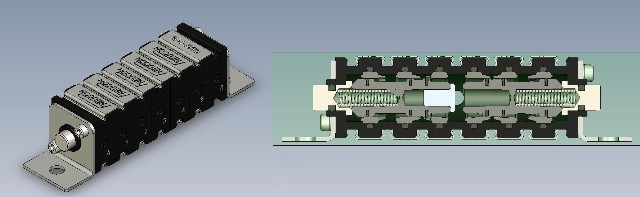

Balanced rapid response .062 travel
Spool Fingers
Provides low friction high flow capitive seal technology
Noryl Resin
Suitable for applications requiring wide temperature swings or placement in harsh environments
Longevity
100 million cycles
Ports
Dual porting on each valve side provides piping versatility and eliminates the need for (Tees)
Override
Color coded anodized manual override buttons
