  Home > Non Electric Programmable Logic Controllers (PLC) > Spare Parts > Cylinder Actuator Assy >

M464Z001

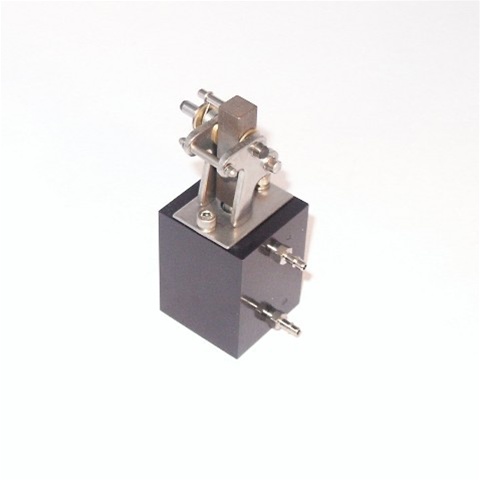

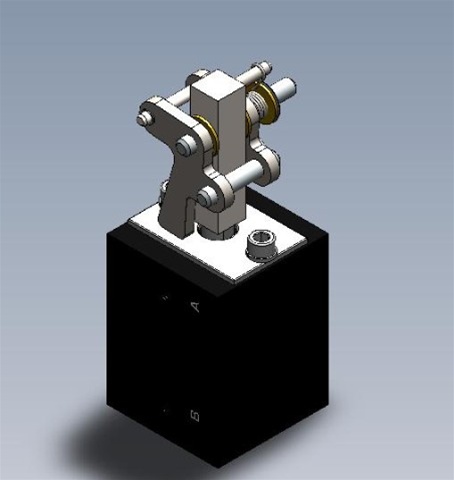

M464Z001
Cylinder and Ratchet Assembly for CSP18 and CSP11 drum programmers; 2011 -T3 Aluminum Black Anodized to (MIL-A-8625 Type 11). Stainless Steel Spring; Buna N Seals

Alternative Views:


Same day shipping for this item!
List Price $287.35

Quantity in Stock:5

Product Code: MCR1811
Qty:

Description Specifications

Cylinder and Ratchet Assembly for CSP18 and CSP11 drum programmers; 2011 -T3 Aluminum Black Anodized to (MIL-A-8625 Type 11). Stainless Steel Spring; Buna N Seals
DESCRIPTION
Model - M464Z001

Features
Seals
Buna N "O" rings
Piston
Highly polished 316 Stainless Steel for longevity
Bearings
Oilite Sintered Bronze Sleeve Bearing
Body
2011T3 Aluminum bar stock black anodized to (MIL-A-8625 Type 11)
Anodized for offshore applications.
Longevity
10 million cycles
Ports
10-32 UNF ports
Mounting
Universal mounting holes facilitate the older CSP programmers for compatibility
