Home
>
Accessories
>
Terminal Strips
>
CTS363

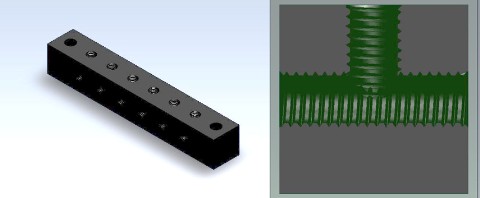

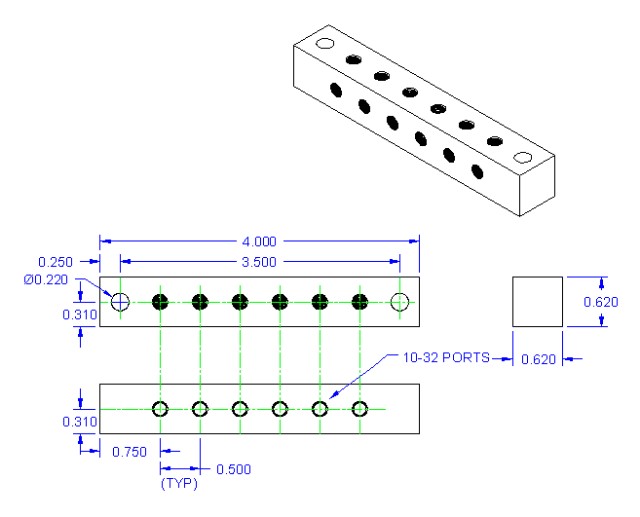

Terminal strip; 6 station; 10-32 x 10-32 x 10-32 ports; three sides; black anodized aluminum
Alternative Views:
Same day shipping for this item!
List Price
$
36.70
Quantity in Stock:14
Product Code:
CTS06
Qty:
Description
Specifications
Terminal strip; 6 station; 10-32 x 10-32 x 10-32 ports; three sides; black anodized aluminum
Model - CTS363
Technical Data
Connection
6 stations x 3 sides, 10-32 UNF Ports
Medium
Compressed air; inert gasses, fluids
Operating Pressure
1000 PSI non shock (68.95)
Temperature
-35 F (-37) to 300 (148.9)
Weight
1.1 oz. (46.6g)
Materials
Terminal Strip
Black anodized aluminum
Operation
Pressurize / Vent
Model - CTS363
DESCRIPTION
Model - CTS363
Features
Mounting
Mounting holes located on each end
Spacing
Ports are spaced to accommodate the largest of fittings
Port
10-32 porting on 3 sides of the terminal block
Options
Material
Brass or stainless steel
