CFA2
CFA2
Fluidic Actuator Kit.

Same day shipping for this item!
List Price $99.90

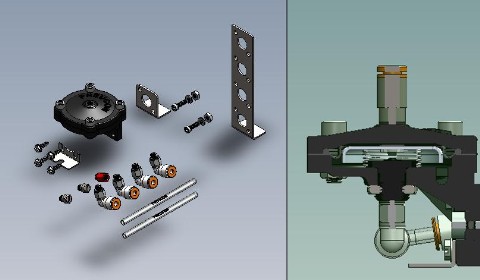

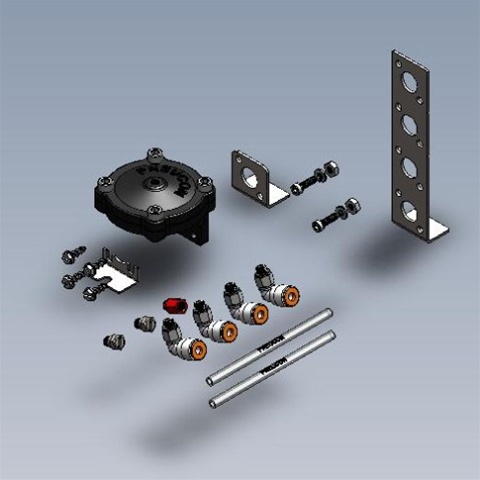

Package includes> Brackets, Fittings, Orifice, Tubing and Hardware

Quantity in Stock:7

Product Code: CFA001
Qty:

Description Specifications 3D Viewer/CAD

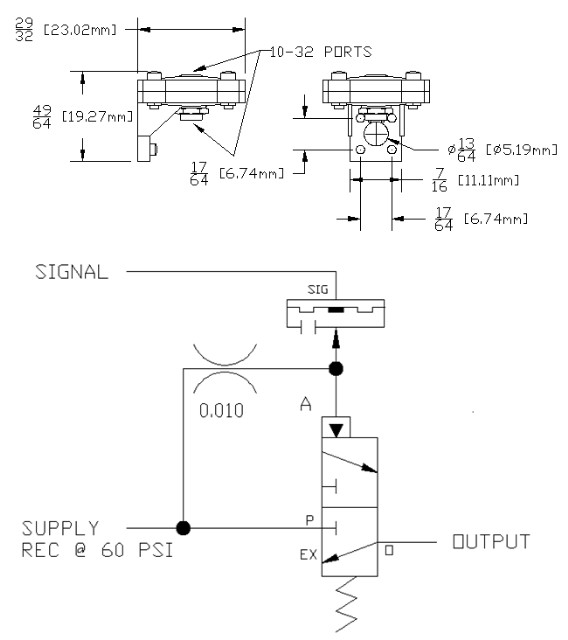

Fluidic Actuator; 10-32 ports; 30% glass filled Noryl® composite; stainless steel hardware
The CFA2 is used to sense input signals as low as 5" H 20. This non adjustable unit is extremely sensitive and particularly useful for liquid level sensing. It also works in conjunction with many proximity and gap sensor products. This unit works via block bleed technology and may be used to pilot any Pneucon or other pilot operated spring return valves.

This kit includes all the necessary components for connecting to any Pneucon pilot operated spring return valve. Additional fittings may be necessary if connecting to valves from other manufacturers.

If you wish this unit to be assembled to a Pneucon valve you are ordering, let us know and we will do so at no charge.
DESCRIPTION
Model - CFA2


Features
Sensitivity

Non adjustable, senses 5" H20; Hysteresis of .5" H 20

Diaphragm

Molded rubber with aluminum spring support

Pressure
.5" H20 to 5 PSI.
Versatility
May be attached to any Spring Return directional valve
Noryl® Resin
Suitable for applications requiring wide temperature swings or placement in harsh environments
Longevity
100 million cycles

Options

Seals

Viton

Ports

M5 port threads
