Technical Data
Connection	10-32 Ports
Filtration	25 Micron
Lubrication	None required
Medium	Compressed air; inert gasses
Operating Pressure	30 to 85 PSIG (2 - 6 bar) oil free
Timing Range	(20 - 300) seconds
Accuracy	+/- .5 of set point
Reset	Manual or pneumatic signal. Pneumatic signal min pulse time (180ms). Max reset frequency 1 per 2 seconds
Temperature	32 F (0) to 140 (60)
Weight	7.5 ounces. (212g)

Materials
Casing, Body and Cover	Plastic
Mounting Screws	Stainless Steel
Seals	Chloroprene
Ports	Brass

Timing operation.

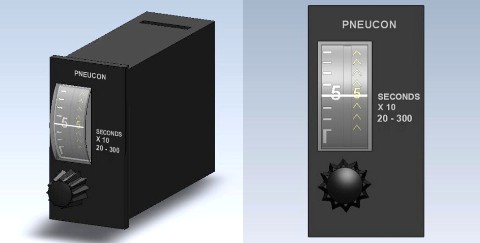

To set timer, rotate the dial to until the desired delay in seconds aligns with the white line in the window.
To start timing apply air to port 1. At the completion of the timing an output will exit Port 2.
Port 2 will continue the output until reset. Reset can be accomplished by venting port 1.
To again start timing reapply air to port 1.
