CPTA004R
CPTA004R
Panel Mount Digital Timer; Non Electric predetermining, adjustable from 2 - 99999 seconds; Manual and automatic reset with integrated 3/2 way valve; 10-32 ports; Accuracy not affected by pressure fluctuations.

Scroll over for a closer look
List Price $1,551.80


Product Code: CDTV06
Qty:

Description Specifications

Panel Mount Digital Timer; Non Electric predetermining, adjustable from 2 - 99999 seconds; Manual and Automatic reset with integrated 3/2 way valve; 10-32 ports; Accuracy not affected by pressure fluctuations.
DESCRIPTION

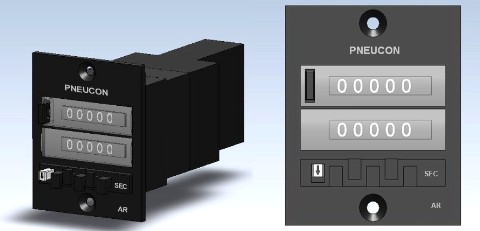

    Model - CPTA004R



Features


Predetermining
Timing
Set the desired digits in number of seconds in the window on the bottom.  When the timing starts the digits will count up by seconds in the top window.  When both windows match the timer will produce an output.


Accuracy
Repeat accuracy within .5% of the set point. Not affected by pressure changes


Clock
Pneumatically wound mechanism is not affected by atmospheric or supply air pressure changes


Environment
Non electric movement perfect for explosive or wash down applications

Valving
3/2 way normally closed


ResetReset is Automatic at the end of timing or may be reset manually at any time

Connections
10-32
