C52FI11B-O
C52FI11B-O
5/2 way impulse valve with separate pilot and supply lines; adjustable timed output signal when pilot is applied, spring return, Buna N seals

Alternative Views:


Same day shipping for this item!
List Price $119.77

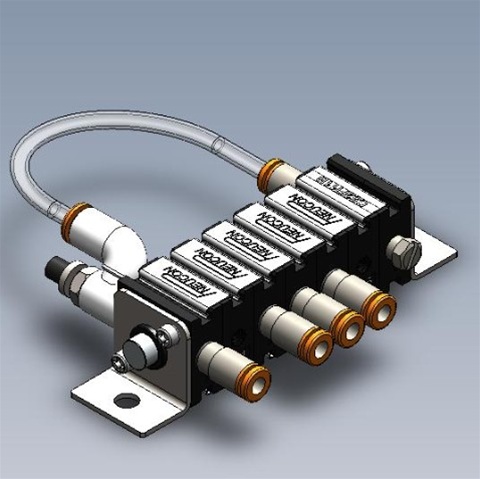

Package includes> Brackets, Fittings, Flow Control and Tubing


Product Code: CDI30

End button style

Stainless Steel, Standard [Add $3.35]
Metric port threads

M5 Threads [Add $2.85]

Qty:

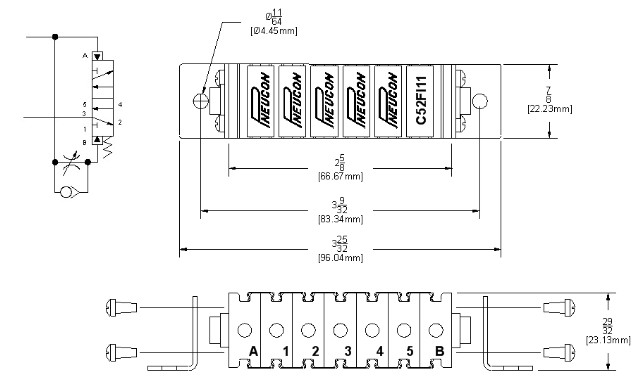

Description Specifications 3D Viewer/CAD

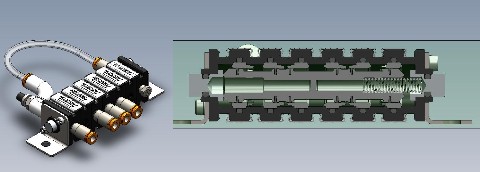

5/2 way impulse valve with separate pilot and supply lines; adjustable timed output signal when pilot is applied; Balanced spool design; Spring return; 10-32 ports; 30% glass filled Noryl® composite; Stainless Steel Spring clips; Color Coded manual override buttons.

DESCRIPTION
Model - C52FI11B-O


Features
Seals
Patented Tadpole low friction seals
Adjustable flow control
Adjustable impulse (one shot) outputs

Spool
Balanced rapid response .062 travel
Spool Fingers
Provides low friction high flow captive seal technology
Noryl® Resin
Suitable for applications requiring wide temperature swings or placement in harsh environments
Longevity
100 million cycles
Ports
10-32 Dual porting on each valve side provides piping versatility and eliminates the need for (Tees)
Override
Color coded anodized manual override buttons
TimingLonger times are easily adjusted by adding longer loop tubes after the flow control. For extra long output times you may remove the plug from the "B" pilot and add volume chambers

Options

Override

Stainless Steel manual override buttons, Extended (shown) or Tamper resistant flush

Ports

M5 port threads
