C32X2D11B
C32X2D11B
1 pilot A; 1 pilot B, detent action, Buna N seals

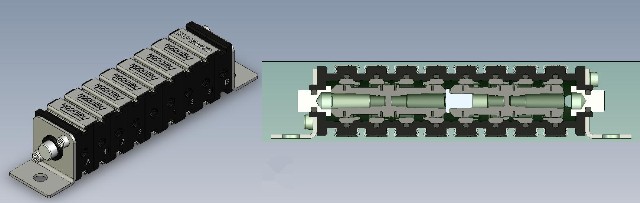

Alternative Views:


Same day shipping for this item!
List Price $74.59
Package includes> Mounting Brackets and Hardware

Quantity in Stock:17

Product Code: CD121

Metric port threads

M5 Threads [Add $2.85]

Qty:
Description Specifications

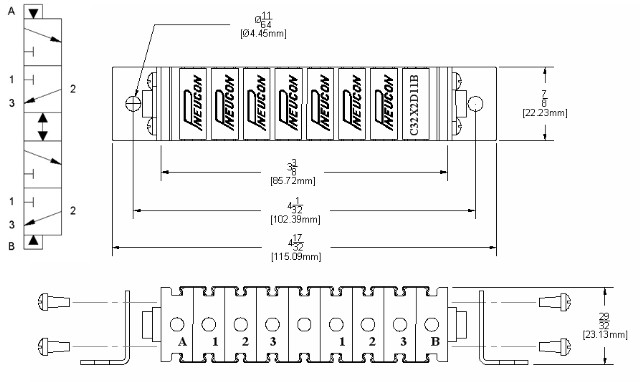

3/2 x 3/2 Multi-valve; Detent action; 1 pilot A; 1 pilot B; Balanced spool design; 10-32 ports; 30% glass filled Noryl® composite; Stainless Steel Spring clips; Color Coded manual override buttons.
DESCRIPTION
    Model - C32X2D11B



Features
Seals
Patented Tadpole low friction seals
Spool
Balanced rapid response .062 travel
Spool Fingers
Provides low friction high flow captive seal technology
Noryl® Resin
Suitable for applications requiring wide temperature swings or placement in harsh environments
Longevity
100 million cycles
Ports
10-32 Dual porting on each valve side provides piping versatility and eliminates the need for (Tees)
Override
Color coded anodized manual override buttons

Options

Override

Stainless Steel manual override buttons, Extended (shown) or Tamper resistant flush

Ports

M5 port threads
