CCK501
CCK501

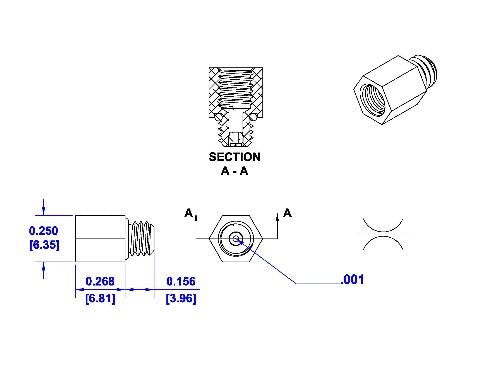

Jeweled orifice adapter; Orange .001; 10-32 ports

Alternative Views:


Same day shipping for this item!
List Price $15.49

Product Code: CCK001A

Material

Material Type:
Brass [Add $0.50]
Stainless Steel 303 [Add $1.50]

Qty:
Description Specifications

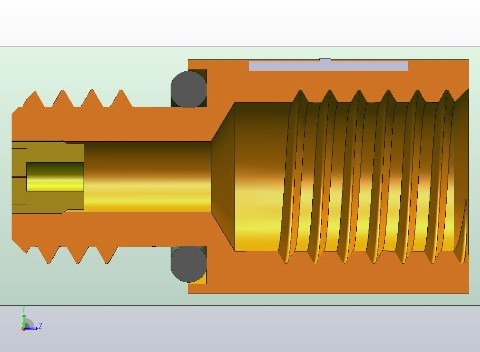

Jeweled orifice adapter; Orange anodized aluminum .001; 10-32 ports
The CCK5 jeweled orifice adapter allows the versatility of using any 10-32 connector fitting. The ruby jeweled orifice is five times more abrasive resistant than carbide, has zero porosity, is high temperature tolerant and is extremely chemical resistant. The ruby will stand up to harsh environments without appreciable wear or corrosion of the orifice.
Using an orifice offers much more consistent accuracy than a needle valve at the same flow requirement. The needle and seat have to be virtually shut to control below a .020 range. Foreign matter is easily trapped and the needle valve will require constant adjusting and cleaning. Jeweled orifices have knife sharp edges that tend to clean themselves.
DESCRIPTION
Model - CCK501



Features
Ruby Jeweled Orifice

Five times more abrasive resistant than carbide

Versatility

Allows the use of any 10-32 connector fitting to become an orifice

Stack-able
You may stack 2 or more orifices together to fine tune your application
Self Cleaning
Knife sharp edges prevents gradual build up of foreign matter

Gasket

Captive O Ring
